Reliability

• The reliability of a product or a system can be defined as the probability that the product will perform its required function under specific condition for a certain period of time.
•
  The reliability of a system depend upon reliability of individual component.
• For series connection.


Question :a product has two component both of which must work for the product to function ,component one has reliability of 80% and component two has reliability of 90%, compute the reliability of system.

Note: reliability of system is always less than or equal to reliability of individual component when they are connected in series.

For equal

• When all component have 100% reliability.
• When there is a single component.

Note: as the component increases in series the reliability of system will decrease.

How to increase reliability of system ?

For parallel connection

Question : two power generator provide electricity to a facility that is main and backup generator. The main generator has reliability of 95% and the backup has a reliability of 90% ,compute the reliability of system.

Note: reliability of system is greater than reliability of individual component when they are connected in parallel.

Note: as the number of component in parallel increases the reliability of system will increase.

Reliability prediction using exponential distribution.

• It is one of the most commonly used distribution in the reliability prediction, it is used to predict  the probability of survival to a particular time.

MTTF (mean time to failure)

• It referred as the average time an item may be expected to function before the failure.
• It is used for non repairable item.
• Example bulb


MTBF (mean time between failure)

• It referred as time between two failure.
• It is used for repairable item.

MTTR (Meantime to repair)

• ti = the repair time for ith failure.

Note: MTBF can be used for both repairable as well as non repairable items.

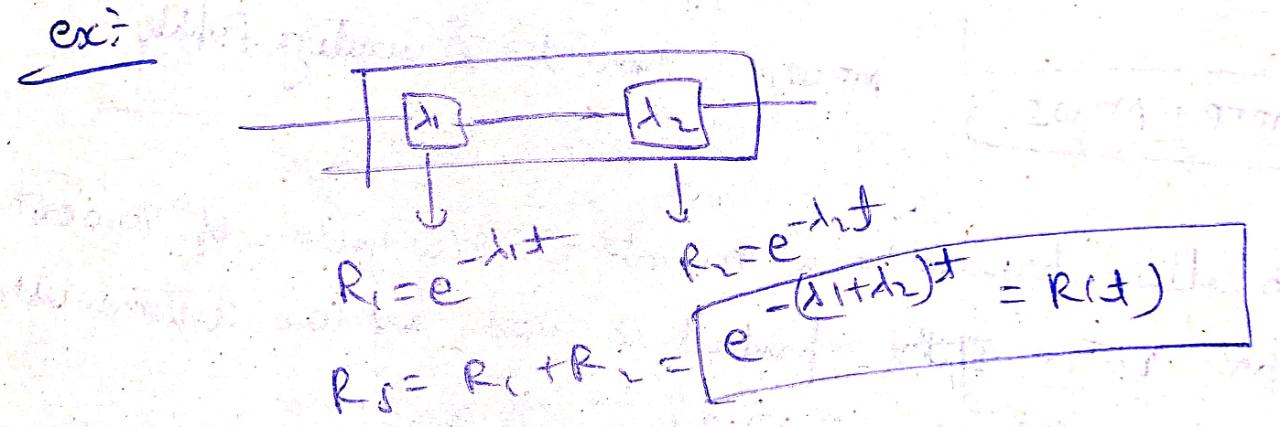

Problem :a system has two component in series with mtbf of  20 hour and 10 hour respectively ,what is 400 hour system reliability.

Question :the reliability of a repairable product by exponential distribution is given in hours as

and mttr is 20 hour. What is the mttf for system in hour.

Availability

• It is the probability that a product or a system is performing its required function at a given point of time when it is used under the stated operating condition.

Maintainability

• It is the probability that a product or system is being failed or system will be restored to a specific condition within a period of time when the maintenance is performed according to prescribed procedure.


Question: suppose that a certain software product has a mean time between failure of 10000 hour and has a mean time to repair 20 hour. If the product is used by hundred customer what is the availability.

Question :an engine is to be designed to have a minimum reliability of 0.8 and minimum availability of 0.98 over a period of 2000 hrs. The mttr is nearly.

For series connection

Question :the automatic focus unit of a TV camera has 10 component in series ,each component has exponential time to failure distribution with a constant failure rate of 0.05/ 4000 hour. What is its mttf for the system.

Bathtub curve

• It is a graphical representation of life time of population of product. It does not depict the failure rate of single item ,it describe the relative failure rate of entire  failure rate over a time.


Region 1 infant mortality

• It is also known as early failures or debugging stage.
• The failure rate decreases with respect to time .
• In beginning of infant mortality rate the failure is high and than decreases with respect to time.

Region 2 useful life

• It is middle stage of bathtub curve.
• Failure rate remain constant
• It is most significant period for reliability prediction.

Region 3 wear out life

• It is final stage of bath tub curve.
• The failure rate increases as product began to wear out because of age or lack of maintenance.

Maintenance are of three types:

1. Reactive maintenance or break down maintenance : it is basically run it till its break , no action or effort taken to maintain the equipment.
2. Preventive maintenance: routine servicing id planned to prevent the failure.
3. Predictive maintenance : timely replacement of component based on the condition monitoring before it cause any break down.
